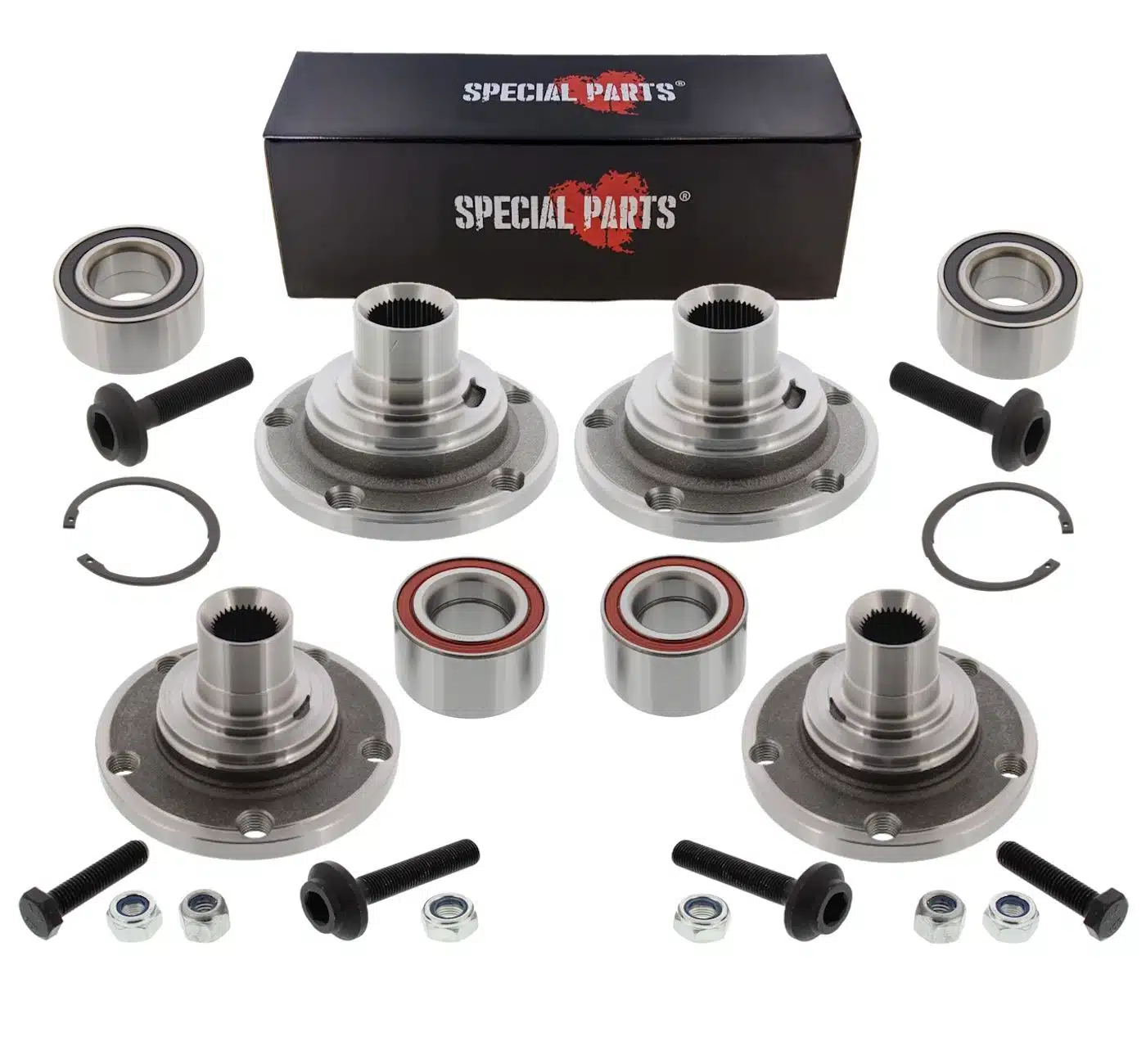

Wheel hub conversion kit, front + rear, Audi 80, 90, 5 x 112, plug and play, front: 82 mm, rear: 75 mm
Wheel hub conversion kit, front + rear, Audi 80, 90, 5 x 112, plug and play, front: 82 mm, rear: 75 mm
£530.00 inc VAT
Available in 10-14 working days from order, Special order terms apply.
Wheel hub conversion kit, front + rear, Audi 80, 90, 5 x 112, plug and play, front: 82 mm, rear: 75 mm
Wheel hub conversion kit for a bolt circle of 5×112 for the front and rear axles of Audi 80, 90, etc.
The wheel hubs are manufactured to a precise fit and can be installed using the original wheel bolts. They are also fully galvanized and therefore very durable.
The wheel hubs are plug-and-play installation – no adapters, etc. are required
. The perfect solution for using rims with a bolt circle of 5×112.
The use of these wheel hubs on public roads generally requires
individual approval in accordance with Section 21 of the German Road Traffic Licensing Regulations (StVZO). For individual approval, we therefore include the required material certificate in the scope of delivery and here under the “Documents” tab.
Installation side:Rear axle, front axle on both sides
Type of approval:subject to registration
Rim hole number:5-hole
Bolt circle diameter [mm]:112 mm
Outer diameter 1 [mm]:39 mm, 43 mm
Outer diameter 2 [mm]:131 mm
Outer diameter [mm]:82 mm
Width [mm]:90 mm, 92.3 mm, 37 mm
Thread size:M14x1.5
Inner diameter [mm]:45 mm
Number of teeth:33, 38
multi-part:multi-part
Unit of measure:Sentence
required quantity:1
Manufacturer approval:Special Parts
Fits the following vehicles :
| Manufacturer | Model | type | Performance | displacement | Year of construction | HSN TSN | restrictions |
|---|---|---|---|---|---|---|---|
| AUDI | 80 B4 Avant (8C5) | 2.0 E | 115 hp | 1984 cc | 09/1991 – 01/1996 – | 0588 545 | |
| AUDI | 80 B4 Avant (8C5) | 2.3 E | 133 hp | 2309 cc | 09/1991 – 01/1996 – | 0588 546 | |
| AUDI | 80 B4 Saloon (8C2) | 2.0 | 90 hp | 1984 cc | 09/1991 – 07/1995 – | 0588 519 | |
| AUDI | 80 B4 Saloon (8C2) | 2.0 E | 115 hp | 1984 cc | 09/1991 – 07/1995 – | 0588 536 | |
| AUDI | 80 B4 Saloon (8C2) | 2.0 E 16V quattro | 140 hp | 1984 cc | 09/1991 – 07/1995 – | 0588 561 | |
| AUDI | 80 B4 Saloon (8C2) | 2.0 E quattro | 115 hp | 1984 cc | 09/1991 – 07/1995 – | 0588 537 | |
| AUDI | COUPE B3 (89, 8B3) | 2.0 | 115 hp | 1984 cc | 10/1988 – 12/1996 – | 0588 501 | |
| AUDI | COUPE B3 (89, 8B3) | 2.0 16V | 140 hp | 1984 cc | 10/1988 – 12/1996 – | 0588 557 |
Made to Order (contact us for lead time)
