MTS Technik Street Coilover for 2K/2KN Caddy Mk3 + Mk4

The Street series suspension is the default configuration of MTS Technik engineers, it guarantees a wide range of lowering and a balance between comfort and stiffness.

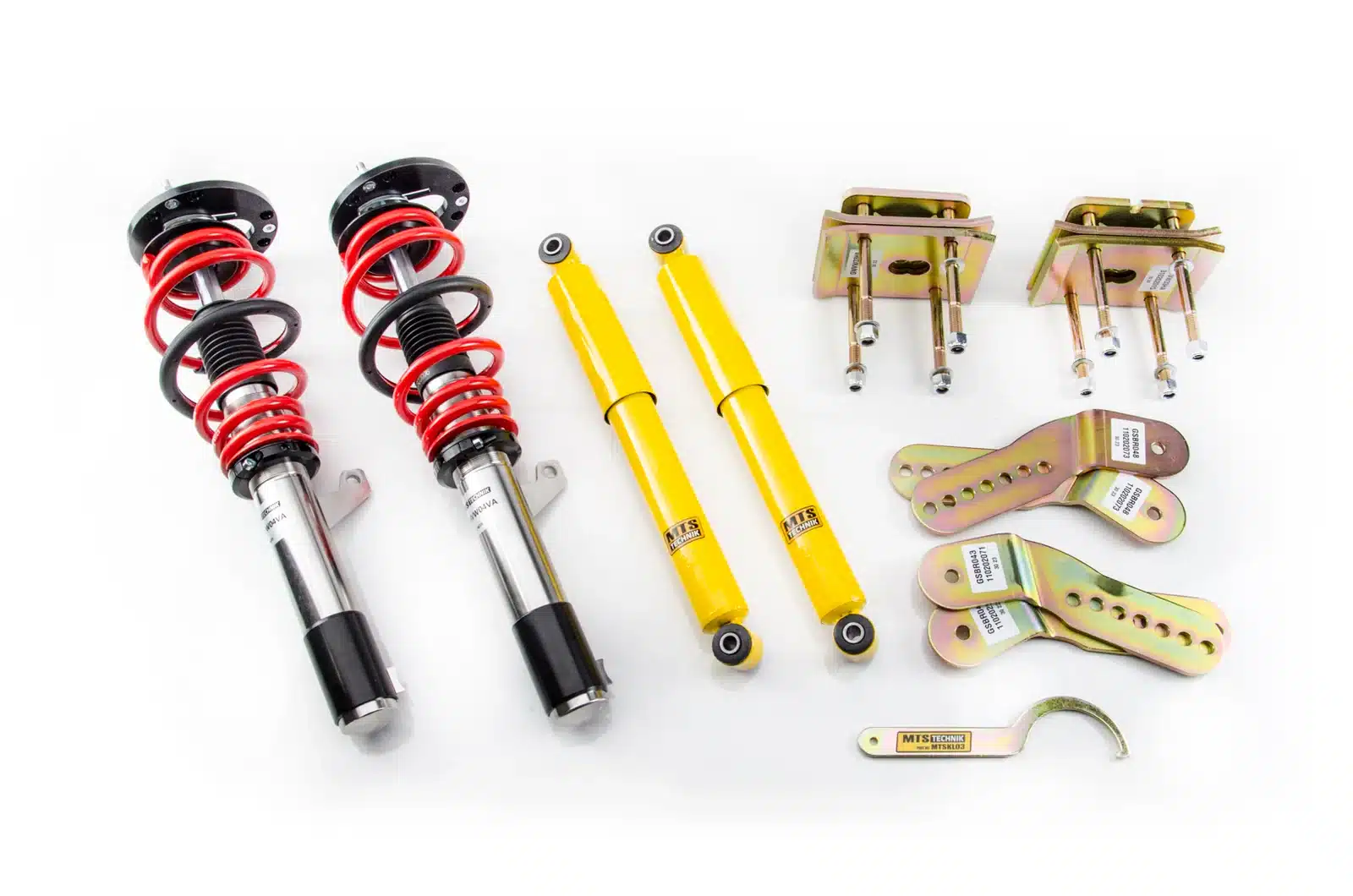

Coilover Kit Volkswagen Caddy III
Coilover Kit MTS Technik for Volkswagen Caddy III, lowering both axles between 35 – 90 mm. Dedicated for the years of: 03/04 – 05/15, for the engine version: 1.2TSI / 1.4 / 1.6 / 2.0 / 1.6TDI / 1.9TDI / 2.0SDI / 2.0TDI.

2 years warranty 2 year warranty with no mileage limit to confirm high quality.
High quality Suspension components characterized by increased corrosion resistance and made of the highest quality materials in either Zinc ” Gold ” or Stainless Steel ” Inox “.

Twin-tube construction The use of twin-tube technology guarantees stable shock absorber performance.
Gas technology Pressurized gas presses the hydraulic fluid, eliminating the “foaming” effect of the oil (an undesirable and typical for oil shock absorbers phenomenon), which means higher efficiency for continuous, intensive work.

Specially selected type of thread Specially selected type of thread and a wide range of suspension adjustment allows optimal setting of the car height.

Top mounts with camber adjustment The camber plates allow the wheel angle adjustment and increase the precision of driving.

hexaCOIL adjustable spring perch Innovative hexaCOIL spring perch, significantly increasing the comfort of suspension height adjustment.

Anti-corrosion protection yellow galvanized Double zinc plated steel shock absorbers as well as anodized aluminum adjusters and caps to ensure increased corrosion resistance.

NEW Optional Stainless Steel “INOX” struts.

Eibach springs Coilover springs made by Eibach, the world leader in the sport springs industry.

Make Volkswagen
Model Caddy III
Type 2K/2C
Engine 1.2TSI / 1.4 / 1.6 / 2.0 / 1.6TDI / 1.9TDI / 2.0SDI / 2.0TDI
Year 03/04 – 05/15

Series: street

Check Vehicle Data

Max. Axle Load FA: -1075 kg
Max. Axle Load RA: -1300 kg

Check Vehicle Data

Max. Axle Load FA : – 1075 kg to 1235kg
Max. Axle Load RA: -1300 kg

Lowering FA: 35 – 90 mm
Lowering RA: 35 – 90 mm
Camber / top mount FA: yes
Camber / top mount RA: no
Coilover Main Spring (Front): Spring rate (32 N/mm)
TUV Certificate: no

v3 – Front and rear axle height adjustable (threaded shock absorber housing on the front, dampers, springs and height adjustable elements on the rear).
8 – Not for 4×4.
19 – Only for vehicles equipped with a one-piece leaf spring on the rear axle. If the vehicle is equipped with a two-part leaf spring on the rear axle a one-piece leaf spring has to be purchased seperately (while used in a Caddy – use VW part no. for leaf spring spring 2K0 511 151 N, while used in a Caddy Maxi use VW part no. for leaf spring spring 2K3 511 151 E).
21 – If the vehicle is equipped with a stock sport suspension, the lowering mentioned in this catalogue will be relatively lower.
24 – During the installation of suspension set the clearance between tire/rim and suspension strut shall be checked. The minimum allowed gap is 5mm (0,2 inch). Otherwise use certificated wheel spacers.
44 – Installation of the rear axle adjustment must be carried out in accordance with the instruction.
45 – Front and rear axle height adjustable (threaded shock absorber housing on the front, provided adjustment plates + shock absorbers on the rear axle).
