Polo 6R/6C / Audi A1 Coilover Suspension Gepfeffert KW V2 Suspension 40-80mm

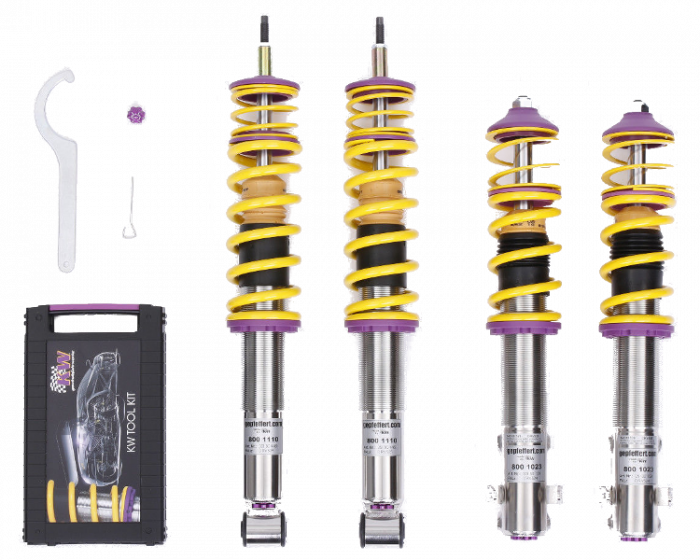

VW Polo 5 (6R/6C) 2008-2017 Gepfeffert V2 Coilover

Fits the following models:

• VW Polo 6R/6C
• Audi A1

Gepfeffert V2 with / without adjustable camber adjustable top mounts

The gepfeffert V2 with adjustable camber dome bearings is mounted plug and play in the vehicle, without using original installed suspension components with. The chassis with adjustable camber dome bearings have compared to our gepfeffert KW “small depth versions” (without camber dome bearings) an even greater “scope” for even more lowering and even more upgrade options to be able to tune the vehicle even more individually to the requirements of each driver.

Example Golf 7 GTI:

• Series KW coilover suspension: adjustment range 20-45mm (without camber dome bearing)
• GEPFEFFERT KW “small depth version” (without camber dome bearing): adjustment range 35-70mm
• GEPFEFFERT KW with adjustable camber dome bearings: adjustment range 45-95mm (upgrade possibilities with other spring systems up to 130mm possible)

Chassis of the brand gepfeffert KW “small depth version” (without camber dome bearing) can of course also be found here in the online store.

For more stability or ride comfort. With adjustable rebound damping.

The KW coilover suspension variant 2 “inox-line” is the suspension for the experienced sports driver who wants to make adjustments to the setup in addition to lowering the vehicle individually. The individually adjustable rebound damping ensures better connection on fast road sections and easier vehicle control. In addition, rolling comfort on bad roads can be significantly influenced with adjusted rebound damping.

The gepfeffert.com® V2 coilover suspension made by KW

With the KW coilover suspension variant 2 “inox-line”, you can influence the handling and comfort yourself as an experienced sports driver through the individually adjustable rebound tuning. The 16 exact clicks allow you to tune the KW dampers tighter or more comfortable without affecting the bottom valve of the compression stage.

Technical information:

The Product is a version with extreme lowering beyond the KW standard lowering adjustment area.

Due to vehicle-specific tolerances, additional work & modifications may be necessary on the vehicle. Any of those arising costs incurred in this regard will not be borne by KW automotive GmbH or StillStatic Limited

After installation of coilover suspension, the clearance of drive shafts and the wheel/tyre combination to any kind of safety relevant parts, must be checked in all driving and max. load conditions.

If necessary, the vehicle ride height must be adjusted higher or the rebound suspension travel must be additionally limited. In any case, however, the national legally prescribed minimum ride heights on the vehicle must be observed (direction indicators, light beam angle etc.).

KW automotive GmbH and / or StillStatic Limited accepts no liability for any damage that may occur as a result of non-compliance with the above points.
